Place of Origin: | China |
পরিচিতিমুলক নাম: | JVT |
সাক্ষ্যদান: | ISO9001/SGS/UL/ROHS/Reach |
Model Number: | JVT 2368HNO-2X10 |
Minimum Order Quantity: | 1000 PCS |
---|---|
মূল্য: | Negotiation |
Packaging Details: | PE bag packing +outer carton |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T or Western Union |
Supply Ability: | 300000 per month |
material: | Nylon 66 | pitch: | 2.6mm |
---|---|---|---|
Application: | Automotive DVD and GPS | Gender: | Receptacle |
Connector System: | Board -to -wrie | Termination Method to PC board: | Through Hole-Solder |

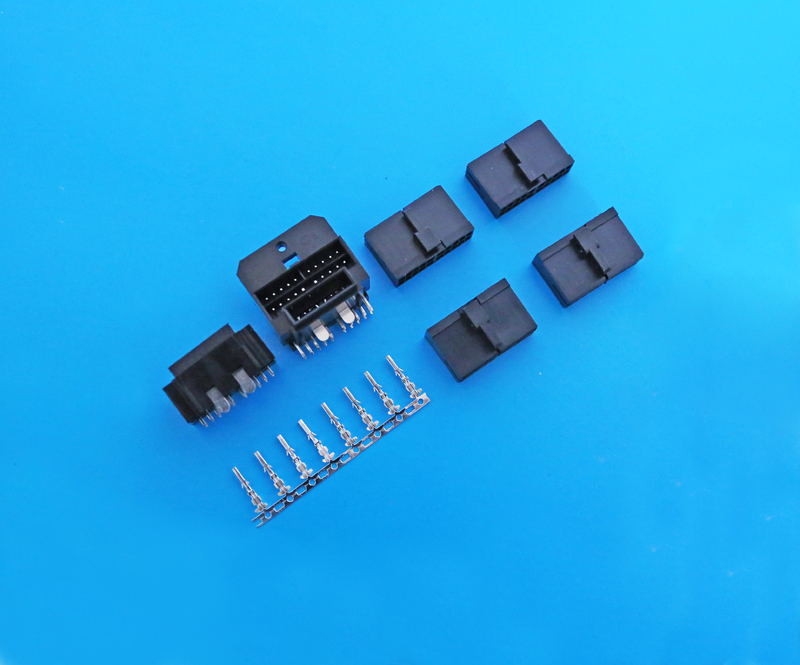

20Pin housing power connector ,dual row ,nylon66 UL 94V-0 ,application in Automotive DVD GPS
Terminal: Brass , Tin-plated
Housing: PA66,UL94V-0
Wafer: Nylon 66 ,Tin plated
Pitch: 2.6mm
Poles:20
Applicable wire: AWG#18-22
Voltage rating: 250V AC/DC
Current rating: 5A AC/DC
Withstand voltage: 1500V AC/minute
Working temperature: -40°C to +105°C
Insulation resistance: 1000MΩ Min
Contact resistance: 20MΩ Max.
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
